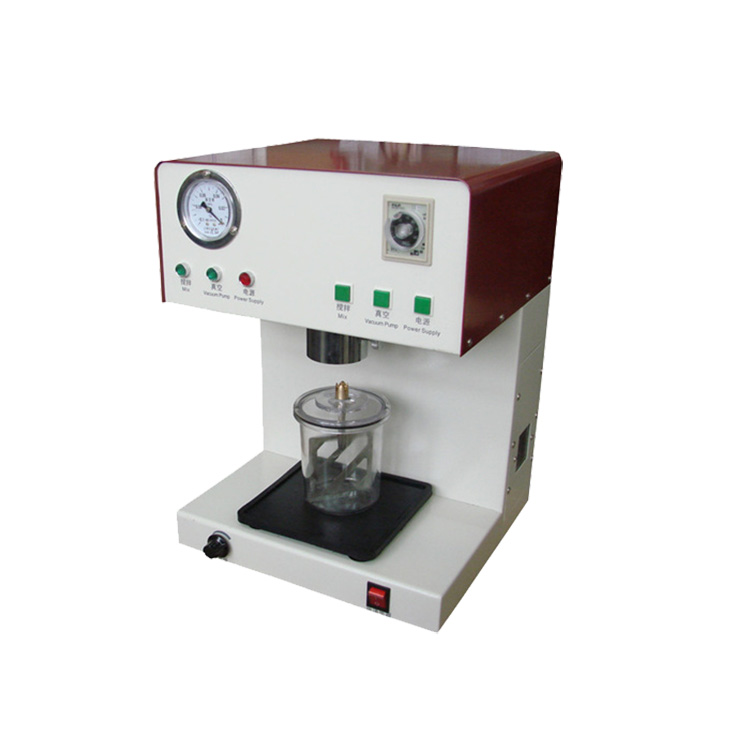

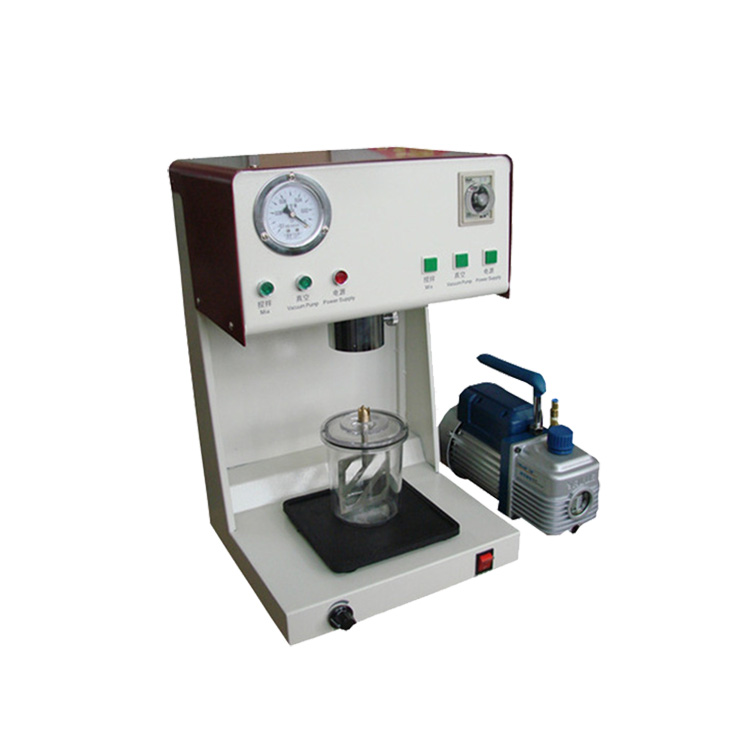

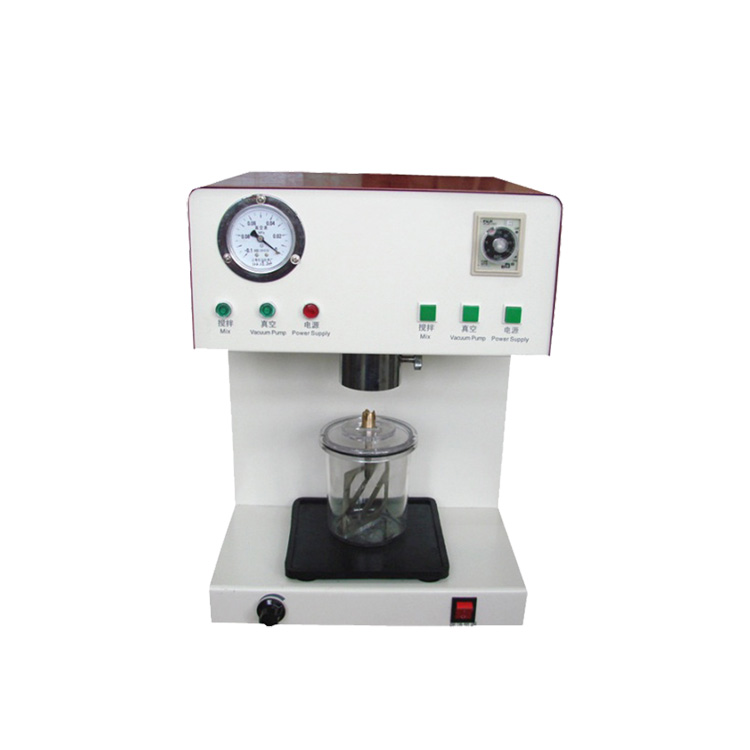

Vacuum mixer is used for mixing and vibrating investment materials and molded materials. As the mixing process is done in a vacuum state, the work piece is free of bubbles, and firmness and compactness of the mold has also been improved.
Voltage | AC220V±10% |
Power | 150W |
Bowl Capacity | 500ml |
Gross Weight | 27kg |
Dimensions | 43x43x59cm |
1.Put oil into the vacuum pump(up to the line). Make sure the oil is within 5mm up or down the oil line while using.
2.Connect the power wire of the oil pump with the mixing machine.
3.Plug in the machine.

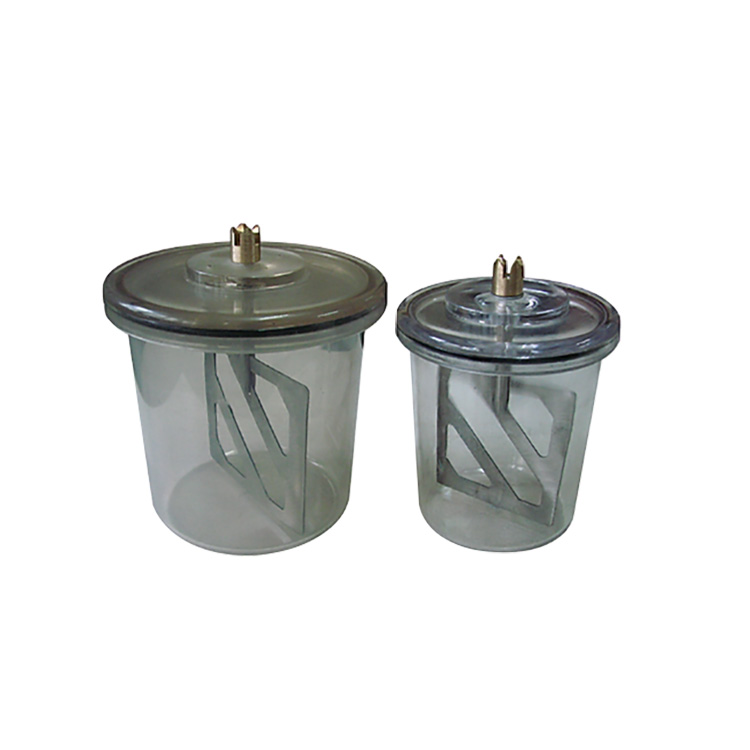

4.Stir the material inside the vacuum bowl to pasty state.

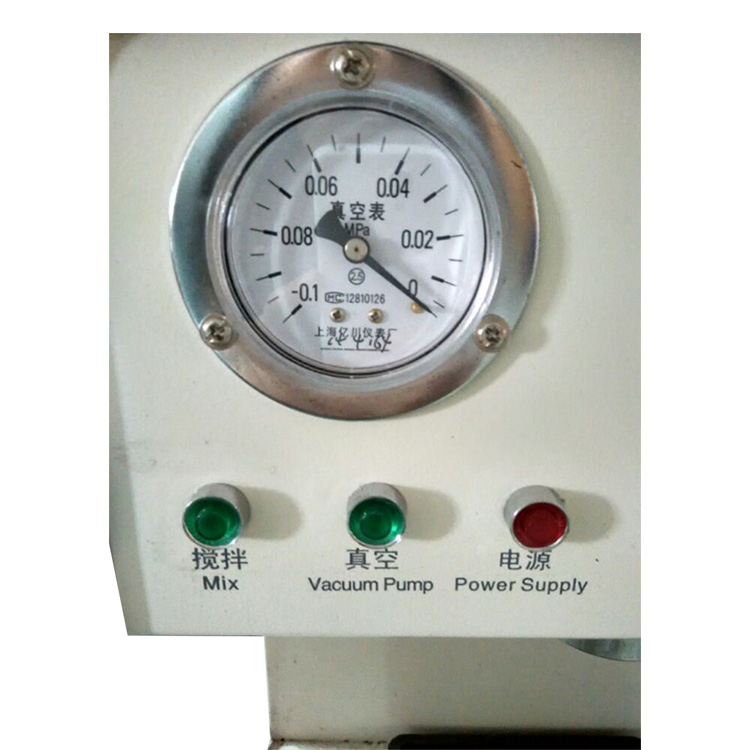

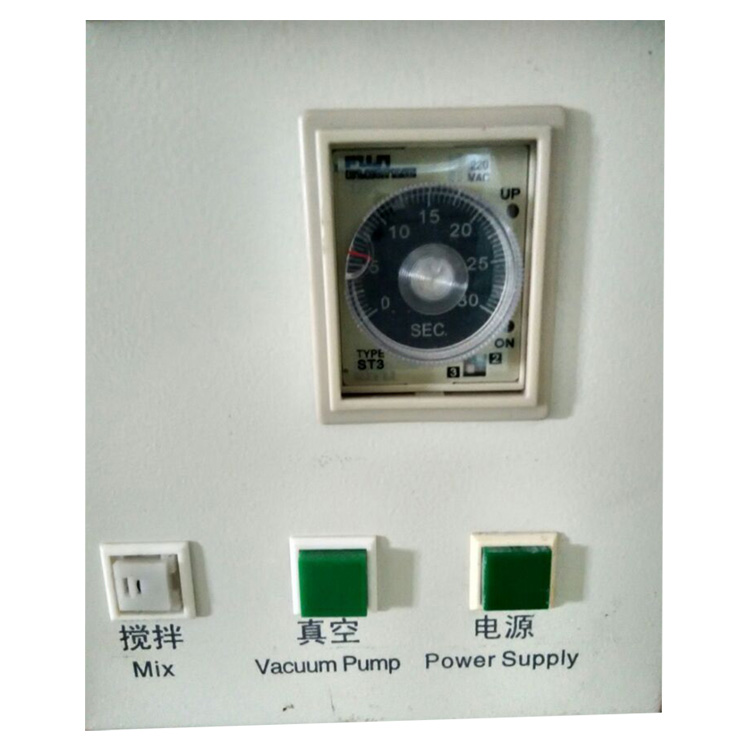

5.Screw up the air outlet bolt. Switch on the machine and preset the Mixing time.Press the Vacuum Pump button. Connect the vacuum bowl closely with the machine and then press Mixing.
6.After finishing the mixing, switch off the machine.
7.Use the lower black part to vibrate.
