Dental Curing Light

Light curing machine is an oral equipment for repairing teeth. It is related to the rapid curing of dental repair resin material under the action of radiation energy by using the principle of light radiation.

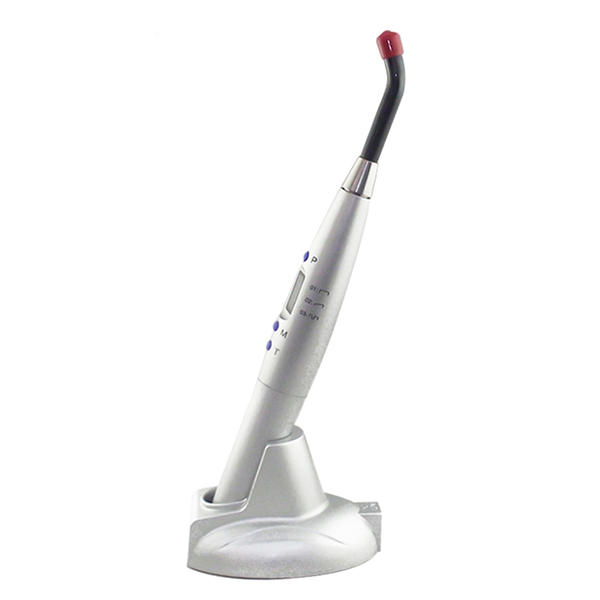

UM-S01 Environmentally-friendly Plastic Shell Curing Light
UM-S01 Environmentally-friendly Plastic Shell Curing Light
UM-S01 Environmentally-friendly plastic shell curing light This machine uses high-power, high-brightness, pure blue LED as the light source, with enhanced condensing A new type of light curing machine with optical fiber light guide rod for dental restoration.

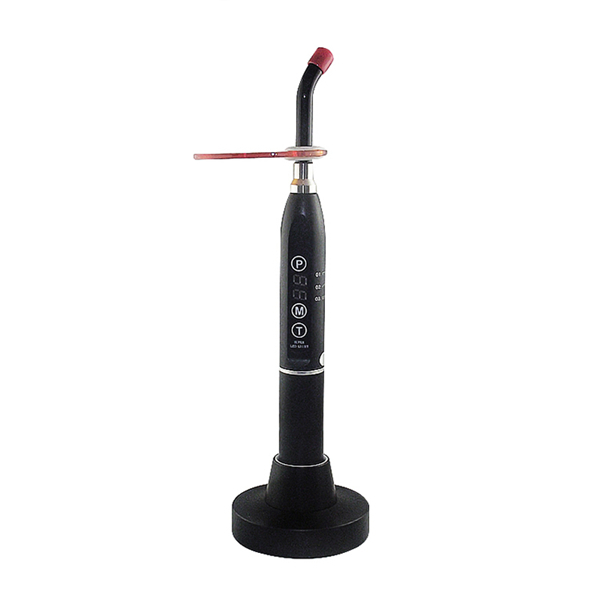

UM-S02 Bright Aluminum Alloy Shell Curing Light
UM-S02 Bright Aluminum Alloy Shell Curing Light
UM-S02 light curing, high power LED cold light, high brightness, pure blue light, solidify the curing effect, aluminum alloy matte shell, comfortable and non-skid, three working modes.

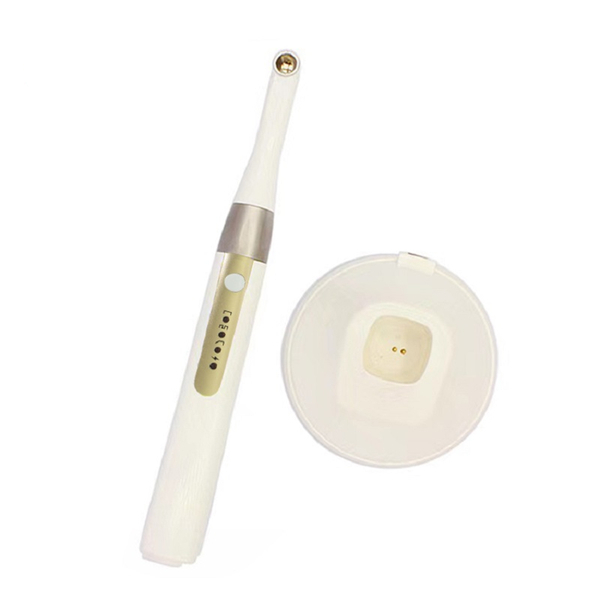

UM-S03 1 Second Curing Light
UM-S03 1 Second Curing Light
UM-S03 light curing, one second curing 3 mm resin, 360 degree rotating irradiation, single bond mode.

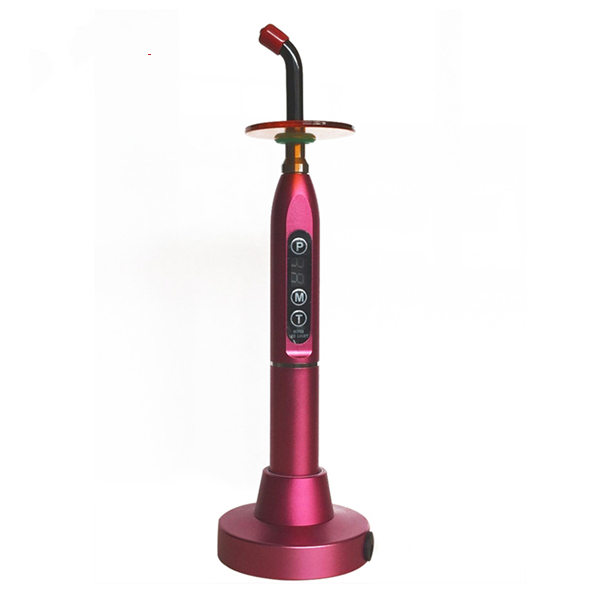

UM-C1 Original Imported Big Power Led From Usa Curing Light
UM-C1 Original Imported Big Power Led From Usa Curing Light
UM-C1 and UM-S02 have basically no difference in function and some difference in appearance, UM-C1 Original imported big power LED from USA Curing Light.

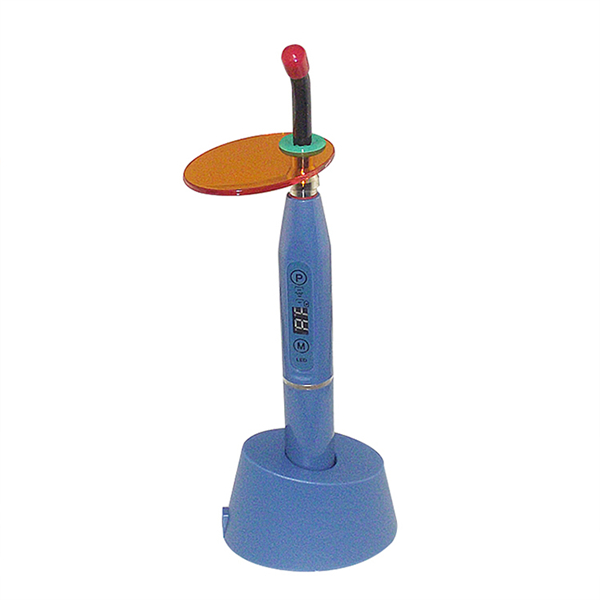

UM-C2 5W Big Power Led Curing Light
UM-C2 5W Big Power Led Curing Light
UM-C2 is a kind of rechargeable LED light curing lamp with a delicate and durable plastic shell, 5W high power LED, high permeability glass fiber, excellent light absorption performance and high brightness.

What is Dental Curing Light?

LED light curing machine is the use of the principle of light radiation, dental repair resin materials under the action of radiation energy rapid curing and involved.It can emit a strong blue light, so that the photofixation resin in a short period of time quickly and effectively polymerized curing.


Classification of Dental Curing Light

Light curing machine can be divided into LED light curing machine and halogen light curing machine.

Now the market is commonly used in LED light curing machine, because the wavelength of light emitted by LED, concentrated in the 430 ~ 480nm, is the sensitive wavelength of light curing resin, because there is no other color light, so more than 90% of the energy is converted to pure blue light energy, almost no excess heat generation


Structure of Dental Curing Light Machine

LED light curable machine has a variety of appearance, but the structure is generally the same, respectively: light guide rod, light curable shield, LED lamp, electronic controller, battery and power supply

FAQ's of Dental Curing Light

FAQ's of Dental Curing Light

  • After Light Curing, When Adjusting, Found That The Hardness Is Not Enough, After Adjusting, Is It Still Irradiated?

    This situation shows that the material curing is not sufficient, need to pay attention to whether to operate in accordance with the instructions of the material; Note the maximum filling thickness and required light intensity, light duration, and check whether the light intensity of the light curing lamp is appropriate.


  • Light Curing Filling According To How Much Time Is Appropriate?

    How long is the binder best illuminated?What is the exposure time of the double curing material used to bond the prosthesis?

    Different materials have different triggering systems, so the required excitation wavelength and illumination time are different. Therefore, the corresponding wavelength, light intensity and illumination time need to be selected according to the operation instructions provided by the manufacturer.


  • Is There Any Harm To Prolonged Exposure?

    The effect on the photocurable material itself is minimal, but the heat generation is too high and can irritate the pulp and soft tissue.


  • How Often Do You Test The Light Intensity Of Dental Curing?

    Curable light has very little attenuation, but we still recommend to test the light intensity before use every day to ensure the accuracy of the output light intensity.At the same time, the charging base of the light curing lamp is equipped with light intensity tester, which is very convenient to measure light intensity.
