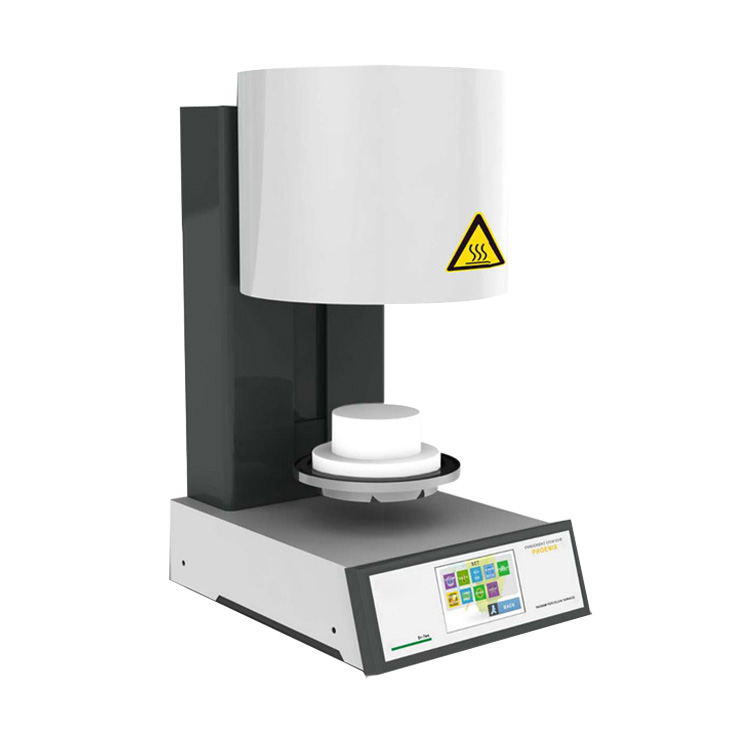

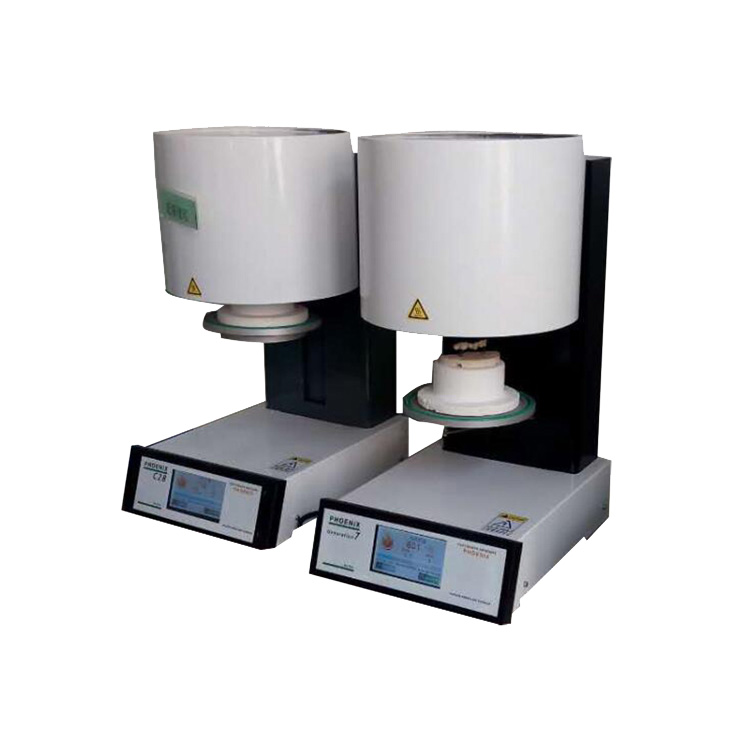

UM-LZ-7 Porcelain Furnace

High quality of the function of temperature adjustment automatically,ensure the actually temperature error within +/-1.


Instructions of UM-LZ-7 Porcelain Furnace

Easy to operate,compact size,the smallest size in the world at present.

Precision stepper motor drive, the smooth and jitter-free functioning, noise-free,Speed programmable.

Spiral quartz chamber of furnace

Temperature adjustment automatically before every firing procedure.

True color touch screen, the operation is simple and convenient.

USB port can easily connect to the computer service program.

Built in 99 program.

Optical status display.



Parameter of UM-LZ-7 Porcelain Furnace

The velocity of temperature increasing

200°C/min max (392°F /minute)

The max temperature

1200°C max (2283°F)

The time which can be kept at the max temperature

2 H

Vacuum level

1-101%

Operation range

100-120V 50/60HZ 230V 50/60HZ

Electric current

14.5ampere@110V 7.0ampere@230V

Power

max 1500w



Device in Box Complete With

 1 furnace

 1 firing pan

 1 connection cable for the mains power supply

 1 furnace tweezers

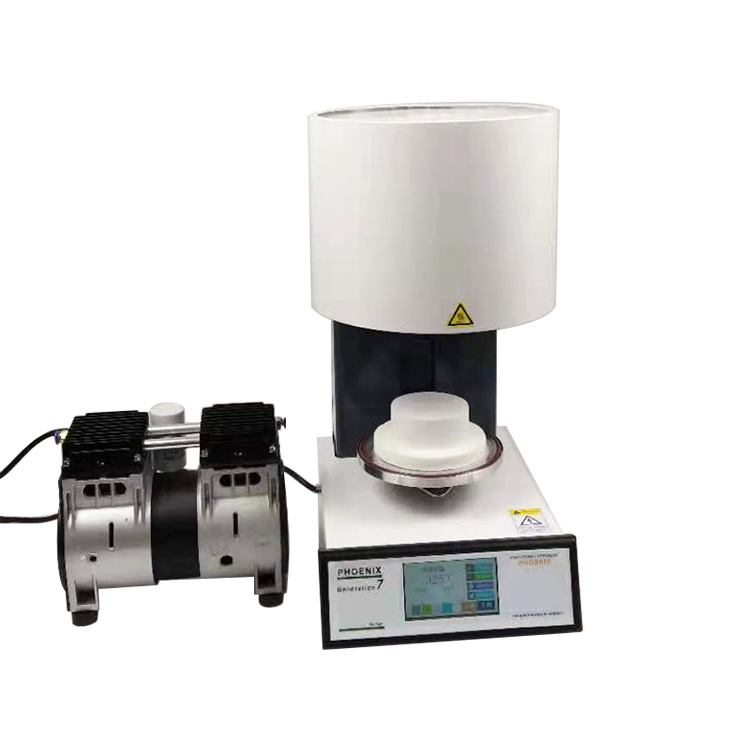

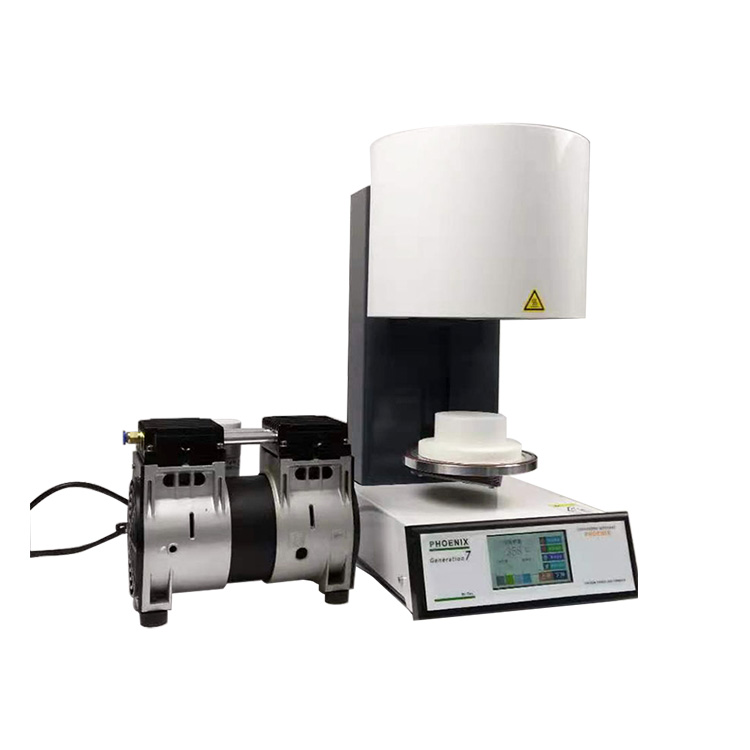

 1 vacuum pump

 1 Repair kit package
