Our company's um-j series oil-free ar compressor adopts high-quality, large-flow oil-free piston compressor swing as the power source, which can provide a stable oil-free gas source, prevent oil spots from entering the human body, and avoid terminal malfunctions. Oil product failure caused by oil pipeline. The parts are all selected high quality. This machine is completely manufactured according to the characteristics of dentistry and high flow. The noise is low, the air source of the dry cleaning machine runs smoothly and is automatically controlled. During the operation, when the fuel tank pressure is set to the minimum or maximum value, the compressor will automatically start or shut down. The compressor is particularly suitable for dental treatment as a gas source, and is an ideal choice for medium and small dental hospitals and private dental clinics.
1. 30MM steel materials for the gas tank, firm and safe.
2. Inlet pipe made by copper, durable, abstraction of heat.
3. The perfect welding techniques, coupled with the great paint processing technology, up to craft requirements.
4.Add the over-current protection switch to protect the compressor heard safe.
Stable performance, the noise in line with a quiet place where gas supply requirements.
MODEL | UM-J35 | UM-J65 | UM-J135 | UM-J200 |
Power(W) | 850 | 2*850 | 3*850 | 4*850 |
Capacity(L/min) | 150 | 300 | 450 | 660 |
Speed(r/min) | 1400/1680 | 1400/1680 | 1400/1680 | 1400/1680 |
Tank(L) | 35 | 65 | 135 | 200 |
Maxpressure(Mpa) | 0.8 | 0.8 | 0.8 | 0.8 |
Starting pressure(Mpa | 0.5 | 0.5 | 0.5 | 0.5 |
Noise(dB) | 55 | 58 | 60 | 62 |
Power voltage | 220/110 | 220/110 | 220/110 | 220/110 |
Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
Size(L*W*Hmm) | 40*440*66 | 740*340*660 | 1090*460*790 | 1380*420*760 |
Chair | 2 | 4 | 6 | 8 |
Dryer | none | none | none | none |
Cooling pipe | none | none | none | none |

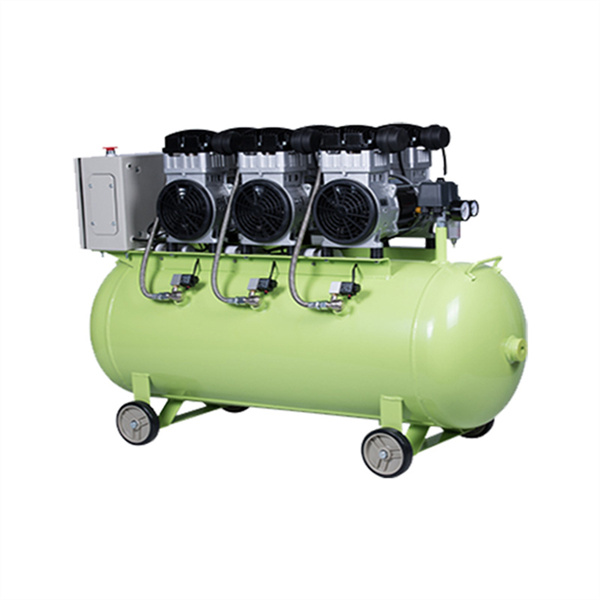

UM-163 Air Compressor for 10 Simulators Working at Same Time
UM-1612 1000L Dental Oilless Medical Air Compressor For 50 Simulators Working at Same Time

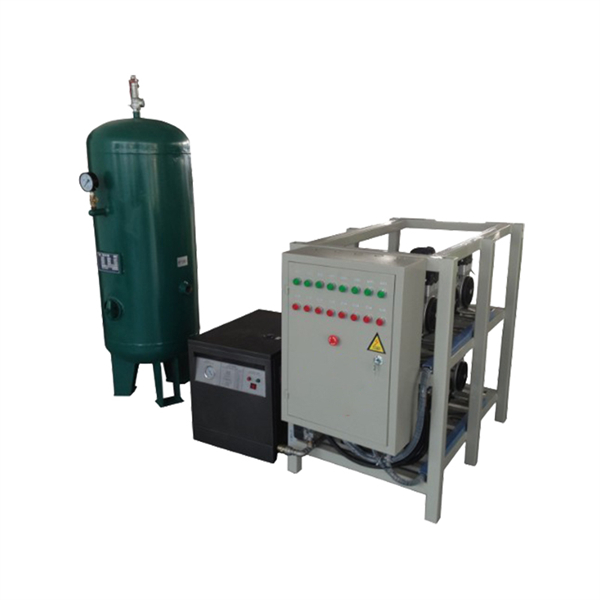

UM-1610 600L Medical Oilless Dental Chair Air Compressor For 40 Simulators Working at Same Time

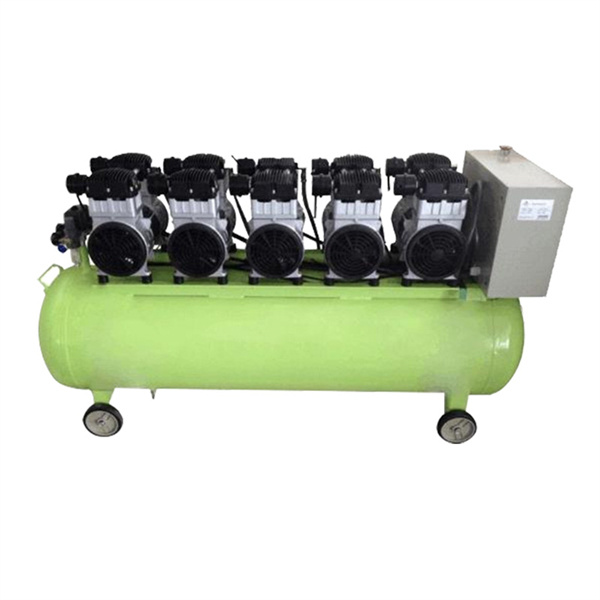

UM-165 240L 8KW Oilless Portable Air Compressor Pump For 20 Simulators Working at Same Time
