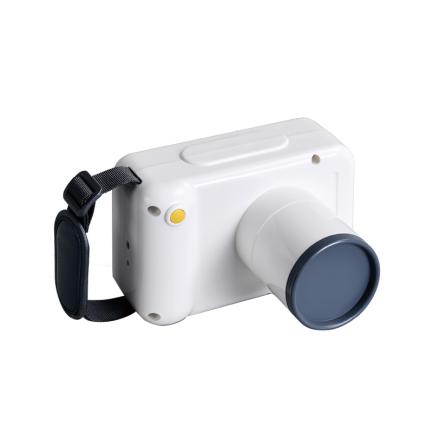

Standards Type GH-1XX Portable Dental X Ray

This portable dental X-ray unit is high frequency machine. The body is small,light weight and nearly no radiation. lt has excellent image quality. portable storage. save more space. lt uses high frequency and DC international power supply. All of the components installed in the central PC board concentrated. Shock, set-up. electron tubes,all of them are insulation vacuum,sealed stereotype protection.



The Structure of Standards Type GH-1XX Portable Dental X Ray





4.1 The main body

4.2 Control panel

1- Exposure switch

8- Adult/children selection

2- Beam cone

9- Film/sensor selection

3- Control panel

10-Tooth position selection

4- Charging hole

11- Exposure time adjusted

5- LCD screen


6- Indicate lights


7- Power switch







The Technical Parameters of Standards Type GH-1XX Portable Dental X Ray


Tube voltage

60,70kV

Tube current

1.5,2.0,2.5,3.0mA

Exposure time

0.1 ~ 2S

The distance from skin to cone

130mm

Frequency

30kHz

Battery

DC14.8V 1600mA

Rated power

100~300VA

Charger input

AC100V-240V

Charger output

DC16.8V

Weight

1.7kg

Size

110*140*165mm



The series is Divided into Four Models





GH-111 Monochromatic screen

GH-121 Color screen

GH-131 2.4 Inch Dot Matrix screen

GH-141 3.5inch Touch screen
