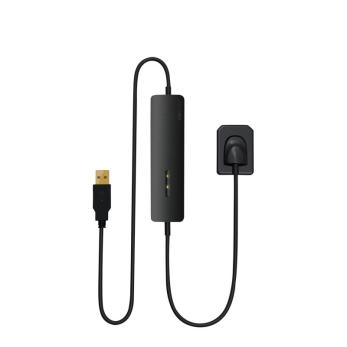

HDR500/ HDR600 Sensor

Main Features of HDR500/ HDR600 Sensor

1 .USB2.0 Plug and plat via the PC

2.12 bit image, file saved as bmp, jpg, gif Basic function software interface, complete integration SDK available.

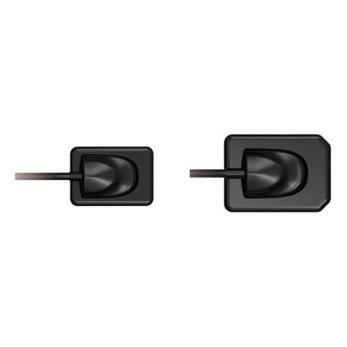

3. Two size sensors driven by one board

4. Standard or 2x2 binning imaging modes

5. External or internal trigger at customer’s choice

6. Programmable time to turn to ‘sleep’ mode automatically

7. Programmable integration time, gain and clamp level

8. LED status and power indication



Sensors Specification of HDR500/ HDR600 Sensor

Resolution

27lp/mm

Active area

675mm² (22.5×38.5mm),972mm² (27×36mm)

Outer dimensions

27.5 ×38.5mm,32.3*44.3mm

Pixel Size

18.5μm

Image Pixel

1.9M(1600*1200),2.7M(1920*1440)
