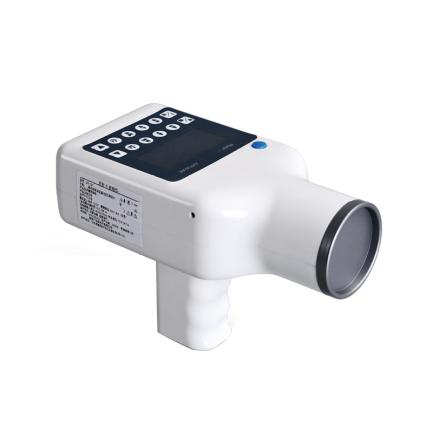

Gun Type GH-2XX Portable Dental X Ray

This unit mainly suitable for oral pre-treatment for learning internal organizational structure.root canal therapy.dental implant and so on, is indispensable in daily life clinic equipment,especially for dental implant surgery.lt also can connect with sensor,is great convenience

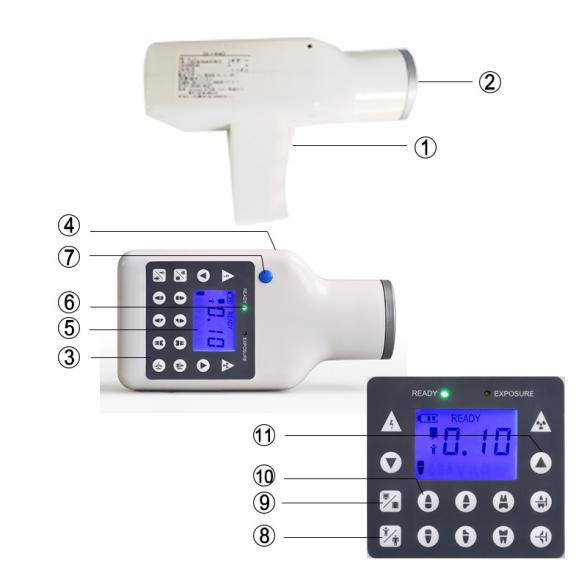

The Structure of Gun Type GH-2XX Portable Dental X Ray






4.1 The main body

4.2 Control panel

1- Exposure switch

8- Adult/children selection

2- Beam cone

9- Film/sensor selection

3- Control panel

10-Tooth position selection

4- Charging hole

11- Exposure time adjusted

5- LCD screen


6- Indicate lights


7- Power switch






Technical Parameters of Gun Type GH-2XX Portable Dental X Ray



Tube voltage

60 KV

Tube current

2mA

Exposure time

0.1-2.0S

Frequency

30kHz

Rate power

60VA

Distance from skin to cone

105mm

Tube focus

0.8mmx08mm

Battery

DC14.8V 1600mAh

Charger input voltage

AC100V-240V± 10%

Output voltage

DC16.8V

Ambient temperature

5°C~40°C

Relative temperature

<75% RH

Net weight

1.7KG

Size (mm)

110x140x165



The series is divided into four models of Gun Type GH-2XX Portable Dental X Ray

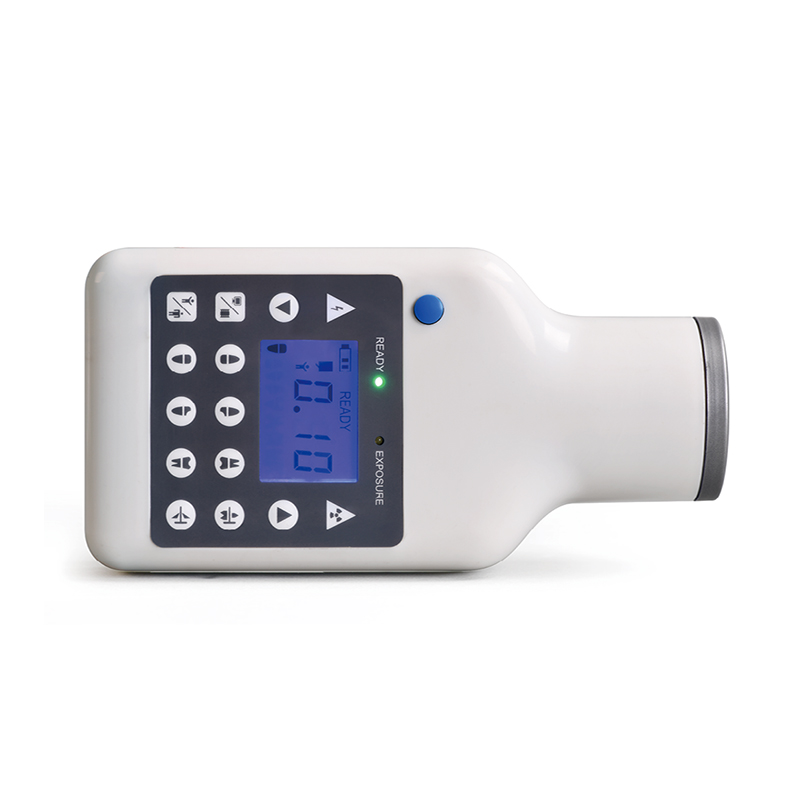

GH-211 Monochromatic screen

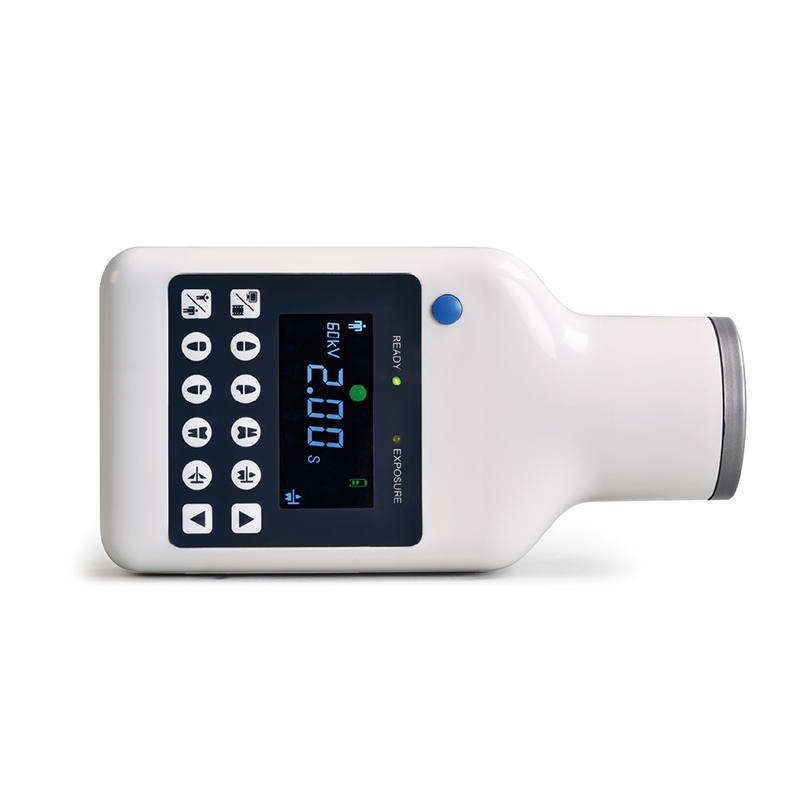

GH-221 Color screen

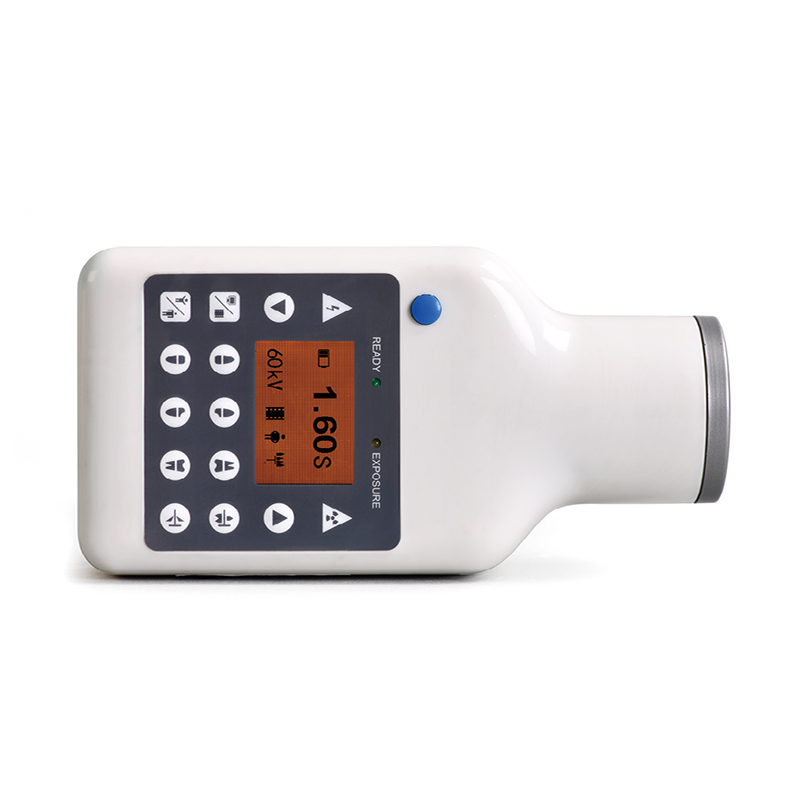

GH-231 2.4 Inch Dot Matrix screen

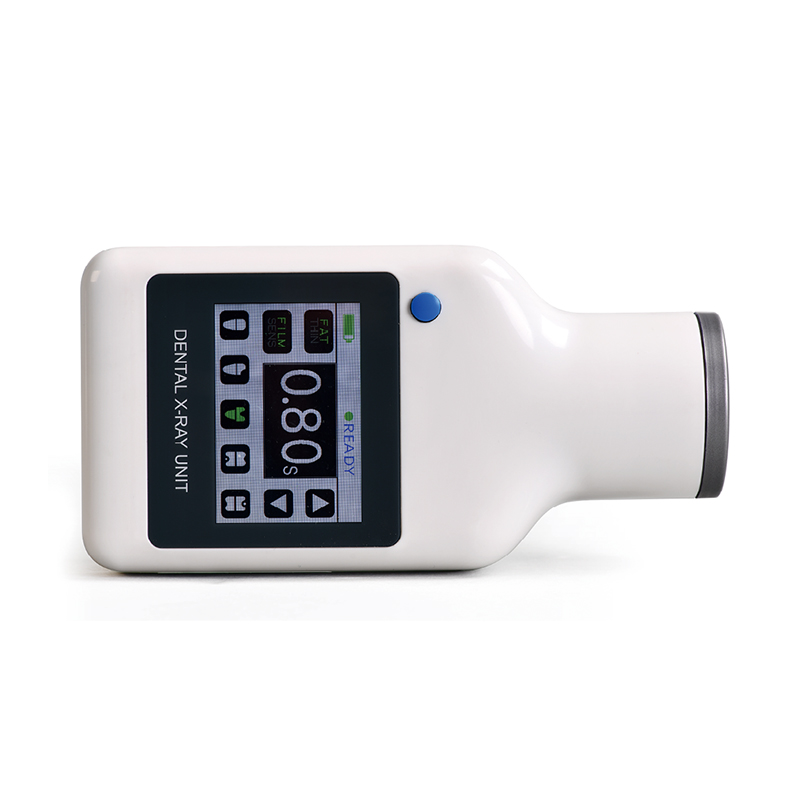

GH-241 3.5inch Touch screen
