The intelligent dry fog robot can super-dry atomize a variety of disinfectants and spray the fog through high-speed airflow.
The transformed mist is dispersed to the disinfection area to achieve disinfection. The robot can autonomously navigate, avoid obstacles and move to the disinfection area, and perform 360-degree disinfection without dead ends around the disinfection target. At the same time, it supports iPad remote control, quickly and centralized disinfection of regional places.
The disinfection method of the robot's ultra-dry atomized disinfectant can realize the separation of humans and machines, reduce human contact, and effectively reduce the risk of infection. It not only makes sterilization more efficient and thorough, but also greatly improves safety.
Mobile mode | self-planning path (covering an area of 25,000 square meters) |
Moving speed | 0-0.6m/s |
Disinfection efficiency | the fastest 15 minutes to complete 1000m³ disinfection |
Working time | 5~6 hours under full power condition (self-charging, battery life is not limited) |
Spray particle size | ≤10μm Spray rate: 2L/ H-5L/H |
Disinfection leve | high efficiency disinfection, up to 6-log level |
Liquid volume | 16L |
The disinfection process is completed by spreading nano-level liquid beads to the area that needs to be disinfected.
When the average diameter of the droplets is less than 10 microns, the sprayed mist can be said to be "dry". Dry fog droplets will not settle and move randomly, will not aggregate together to produce large droplets, will rebound after contact with the surface, and will not break and wet the surface. The characteristics of this form determine that they can move to Areas that are usually difficult to reach.

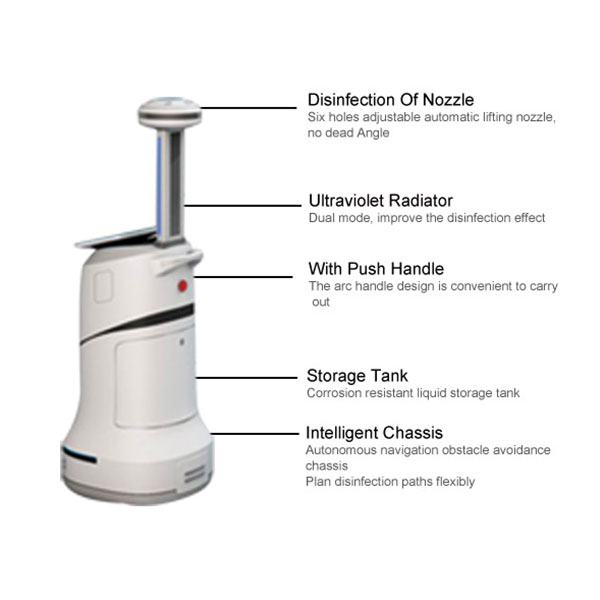

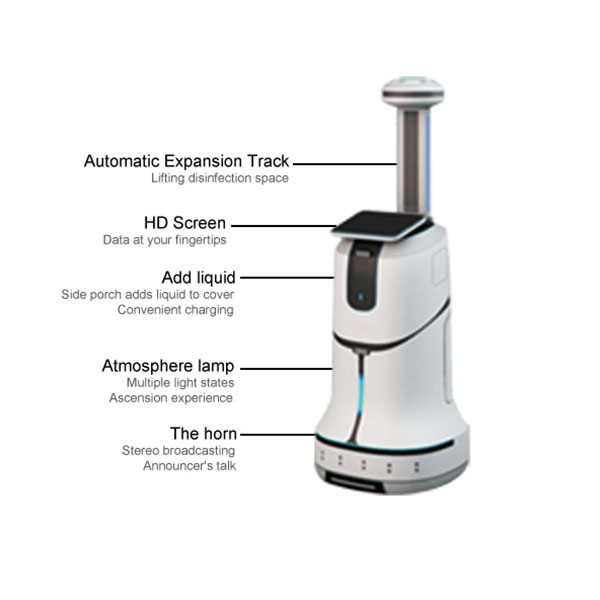

The advantage of Intelligent dry fog robot
1.Navigation obstacle avoidance system, autonomous navigation obstacle avoidance plan optimal path
2.Spray head, automatic lifting, 360 degrees without dead angle coverage
3.Liquid storage tank, large capacity, efficient operation
4.Multi-terminal control, high efficiency and low risk
5.Comprehensive map management
6.Refined operation and flexible deployment
Service halls, laboratories, airports, schools, hospitals, workshops, food enterprises, hotels, subways
1. Navigation obstacle avoidance system, autonomous navigation obstacle avoidance plan an optimal path;
2. Spray head, automatic lifting, 360 degrees without dead angle coverage;
3. Liquid storage tank, large capacity, efficient operation;
4. Multi-terminal control, high efficiency, and low risk;
5. Comprehensive map management;
6. Refined operation and flexible deployment.
