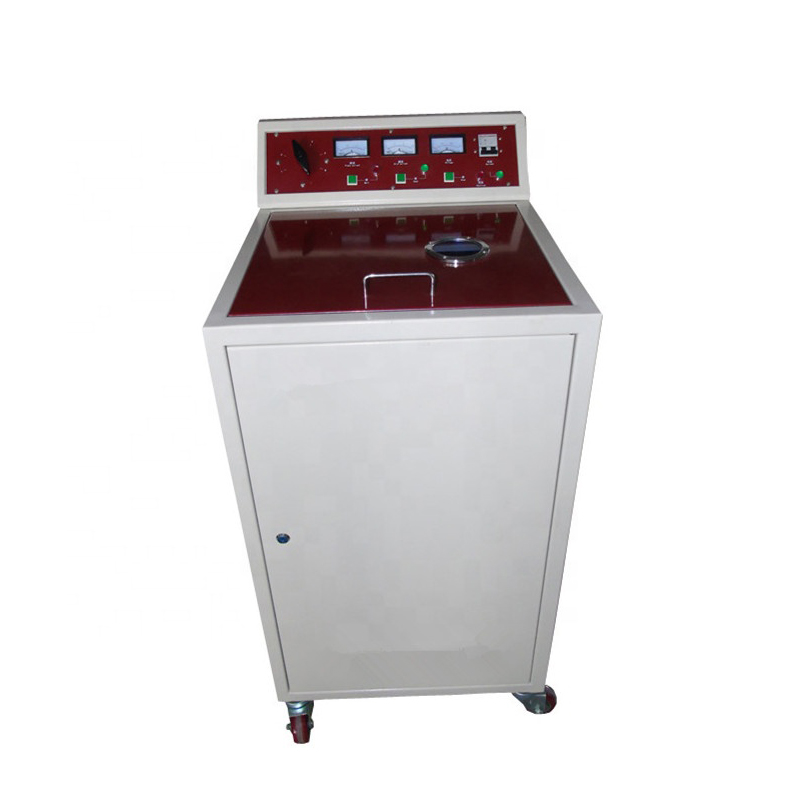

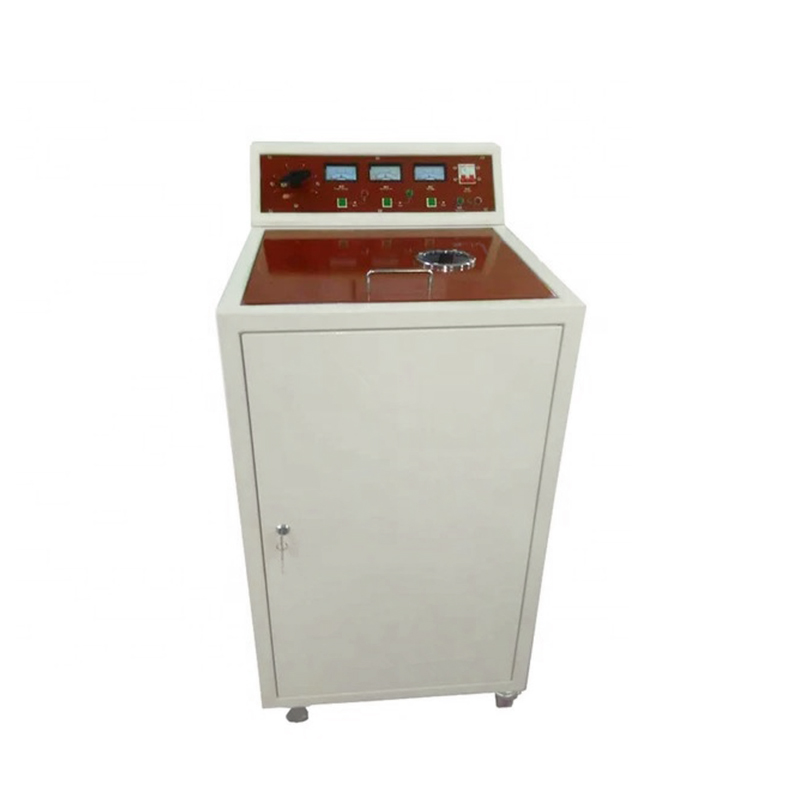

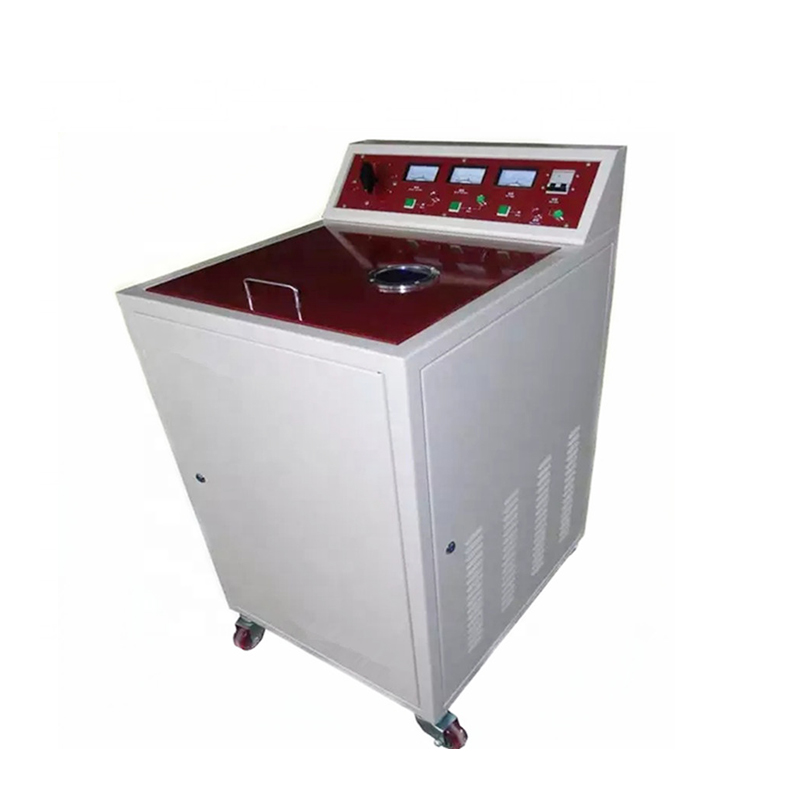

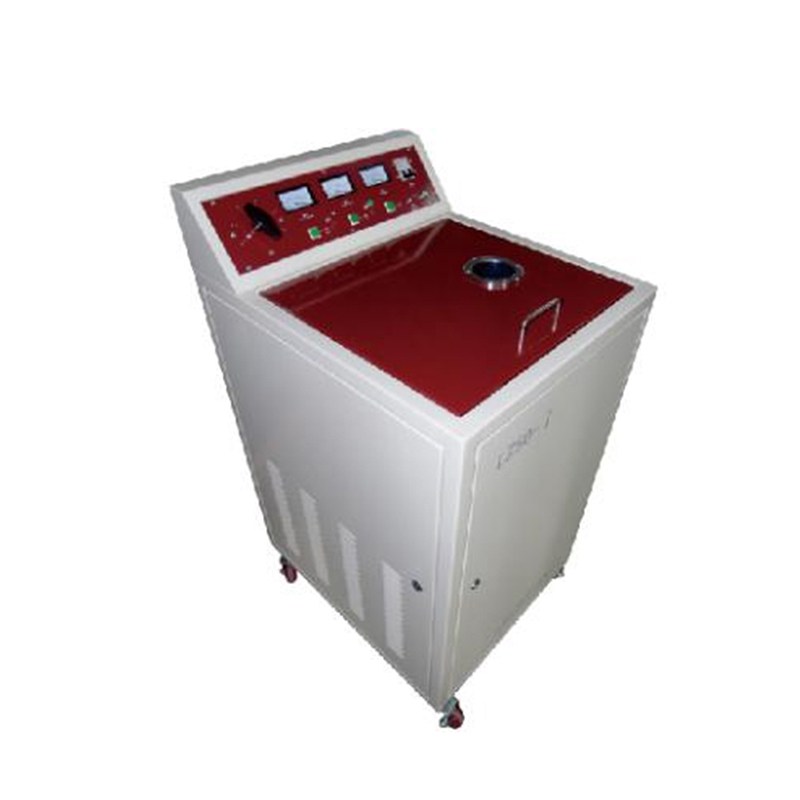

High Frequency Casting Machine is used for casting alloys in prosthetic dentistry and orthodontics. It can be used to melt precious alloys or investment castings in all fields of dentistry. This machine can be used to deal with special structured removable dentures, melt bases of casting crowns, metalporcelain crown, and all kinds of clamps
1.This casting machine is highly efficient, low power consumption and low power rating(4.5KW) machine.
2.No preheating is needed, melting and casting process can start immediately after the machine is turned on, the interval between melting and casting is 5 minutes.
3.This machine can work under the voltage of 220V±10%
4.Low working voltage and low high-frequency radiation makes it safer and more reliable.
5. It is a compact machine with a small size and low weight.
Voltage | 220v/50hz±10% |
Maximum power dissipation | ≤6.5kw |
Frequency of oscillation | 1.5MHZ±0.5MHZ |
Maximum melting amount | 50g(Co-Cr alloy) |
Melting duration | 50g≤1min |
Casting method | induction casting |
Cooling method | air cooled |
Dimension | 52x62x107cm |
Weight: | 160KG |
